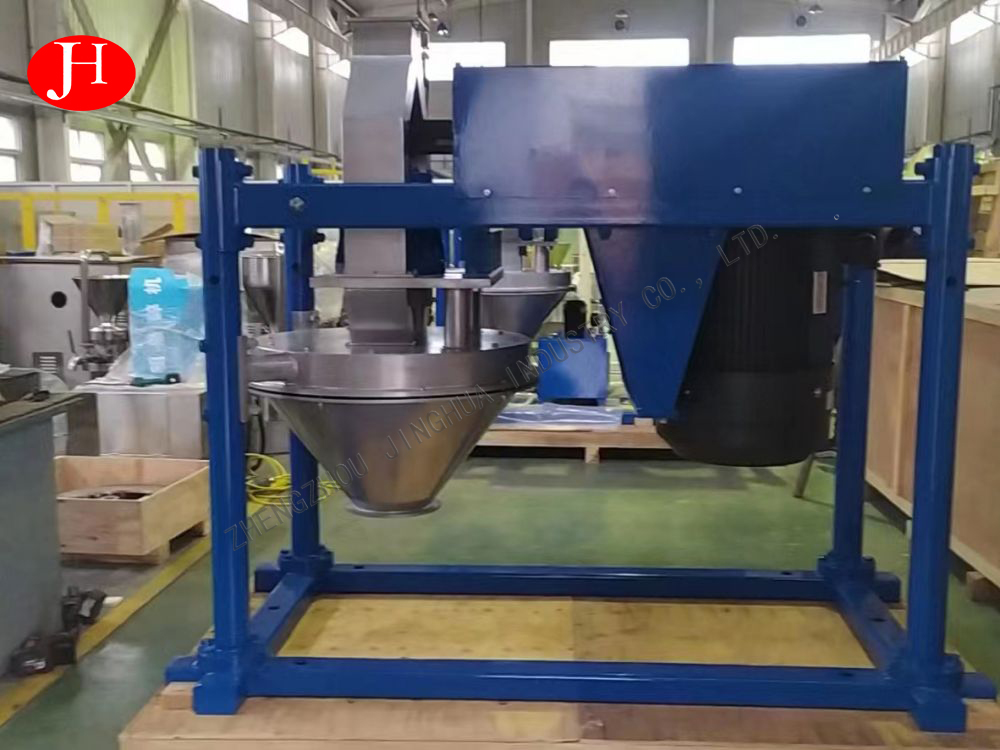

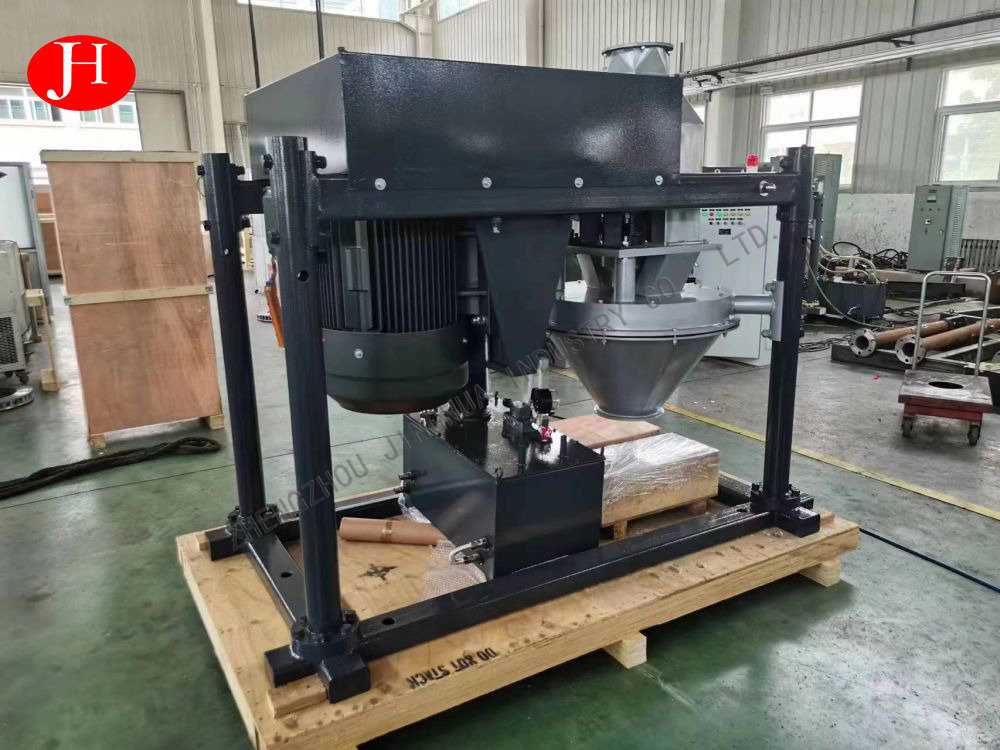

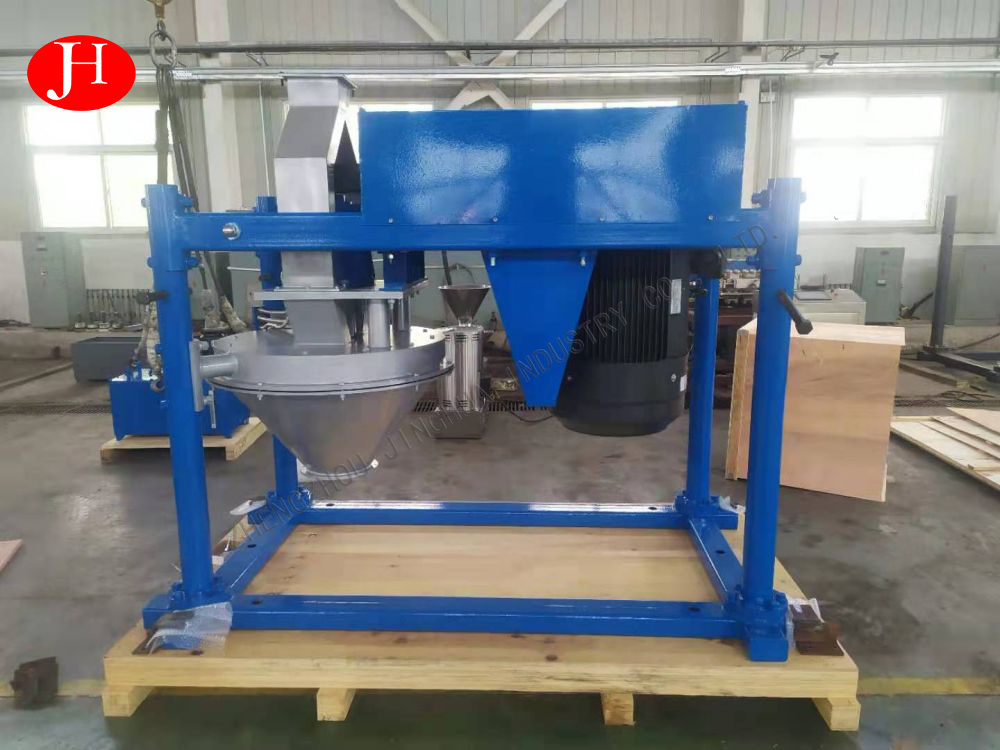

Vertical Pin Mil for Corn Starch Processing
Main technical parameters
|
Main parameter |
Model |
|
|
685 |
1000 |
|
|
Diameter of rotary plate (mm) |
685 |
1015 |
|
Rotary speed of rotary plate (r/min) |
3750 |
3100 |
|
Capacity (marketable corn) t/h |
5~8 t/h |
12~15 t/h |
|
Noise (with water) |
Less than 90dba |
Less than 106dba |
|
Main motor power |
75kw |
220kw |
|
Lubrication oil pressure(MPa) |
0.05~0.1Mpa |
0.1~0.15 Mpa |
|
Power of oil pump |
1.1kw |
1.1kw |
|
Over all dimension L×W×H (mm) |
1630×830×1600 |
2870×1880×2430 |
Features
- 1Vertical pin mill is a kind of modern fine grinding equipment with high efficiency.
- 2Widely used with corn, potato starch industry key processing equipment.
- 3The equipment has the advantages of compact structure, reliable operation, good grinding effect and large processing capacity.
Show Details
The material enters the grinding chamber through the top feed hole, and the slurry enters the middle of the rotor through the left and right pipes.
The material and slurry are dispersed in the working chamber under the action of centrifugal force and subjected to strong impact and grinding by a fixed grinding needle and a rotating grinding needle, thus separating most of the starch from the fiber.
In the grinding process, the fiber is broken up incomplete, and most of the fiber is ground into fine pieces. The starch can be separated from the fiber block to the maximum extent possible, and the protein can be easily separated from the starch in the later process.
The batter processed by the impact grinding needle can be discharged from the outlet to complete the grinding process.
Scope of Application
Widely used as key processing equipment in the corn and potato starch industry.
