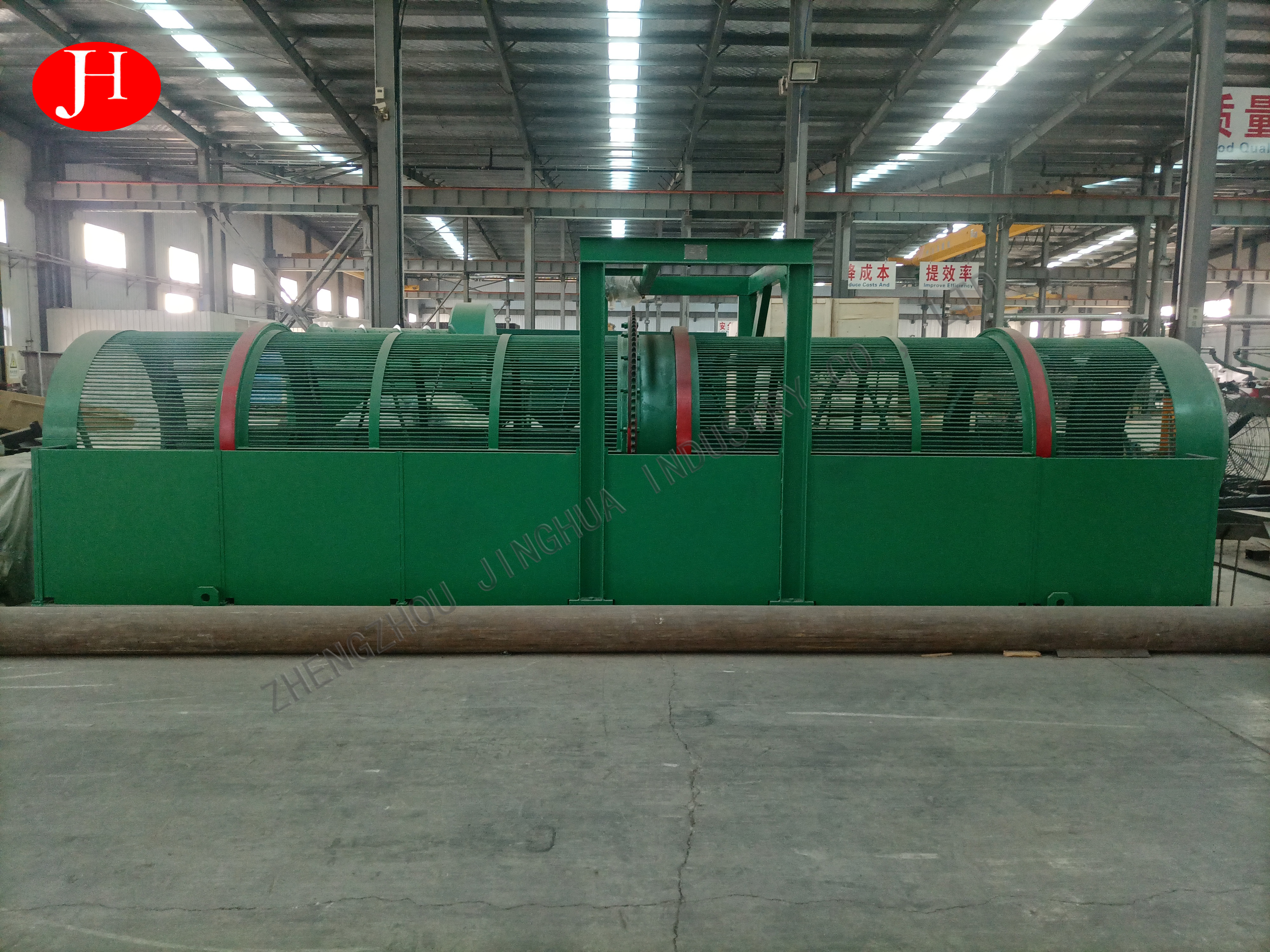

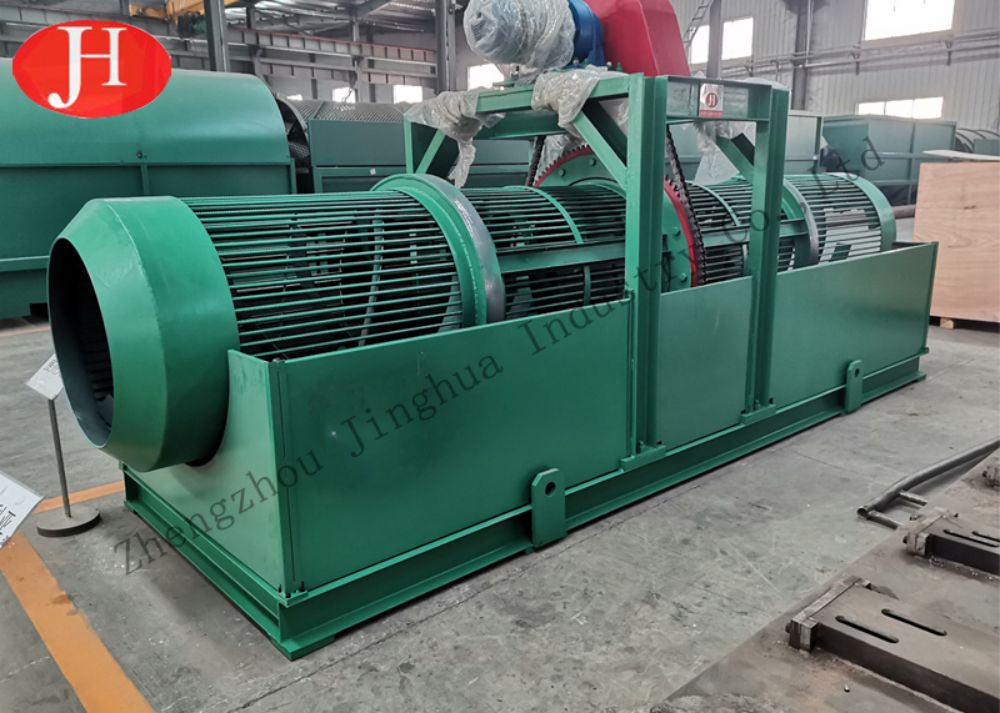

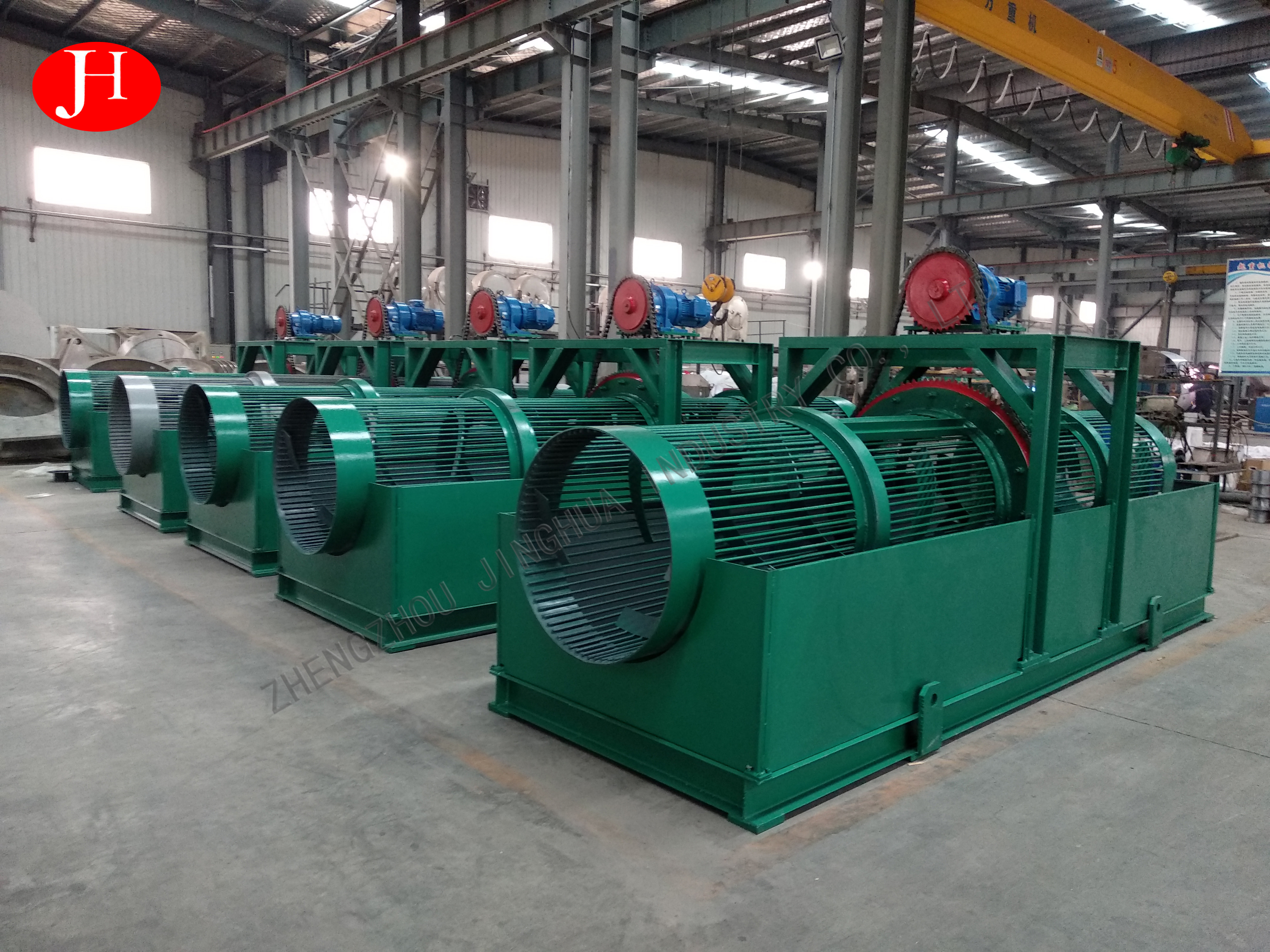

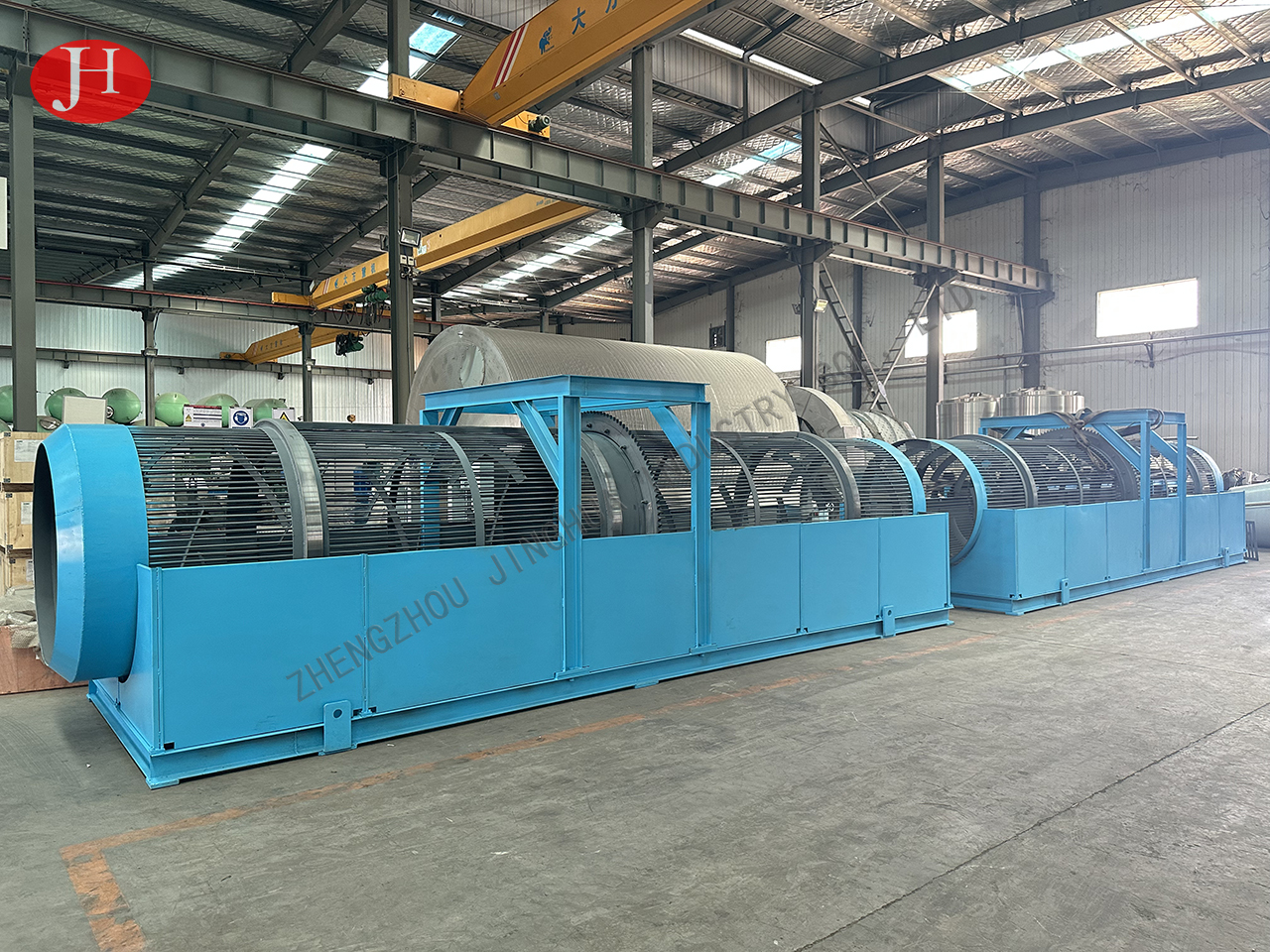

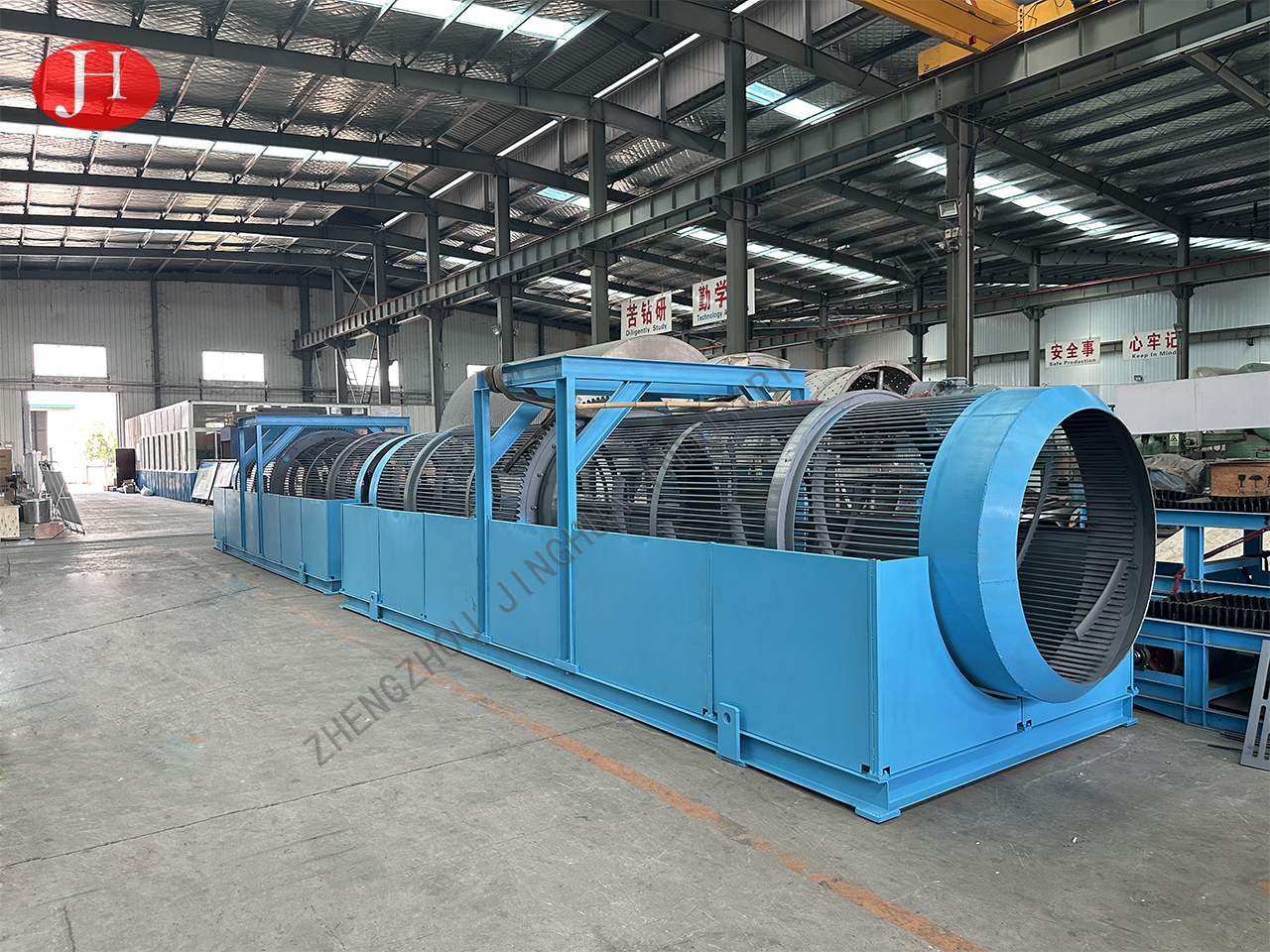

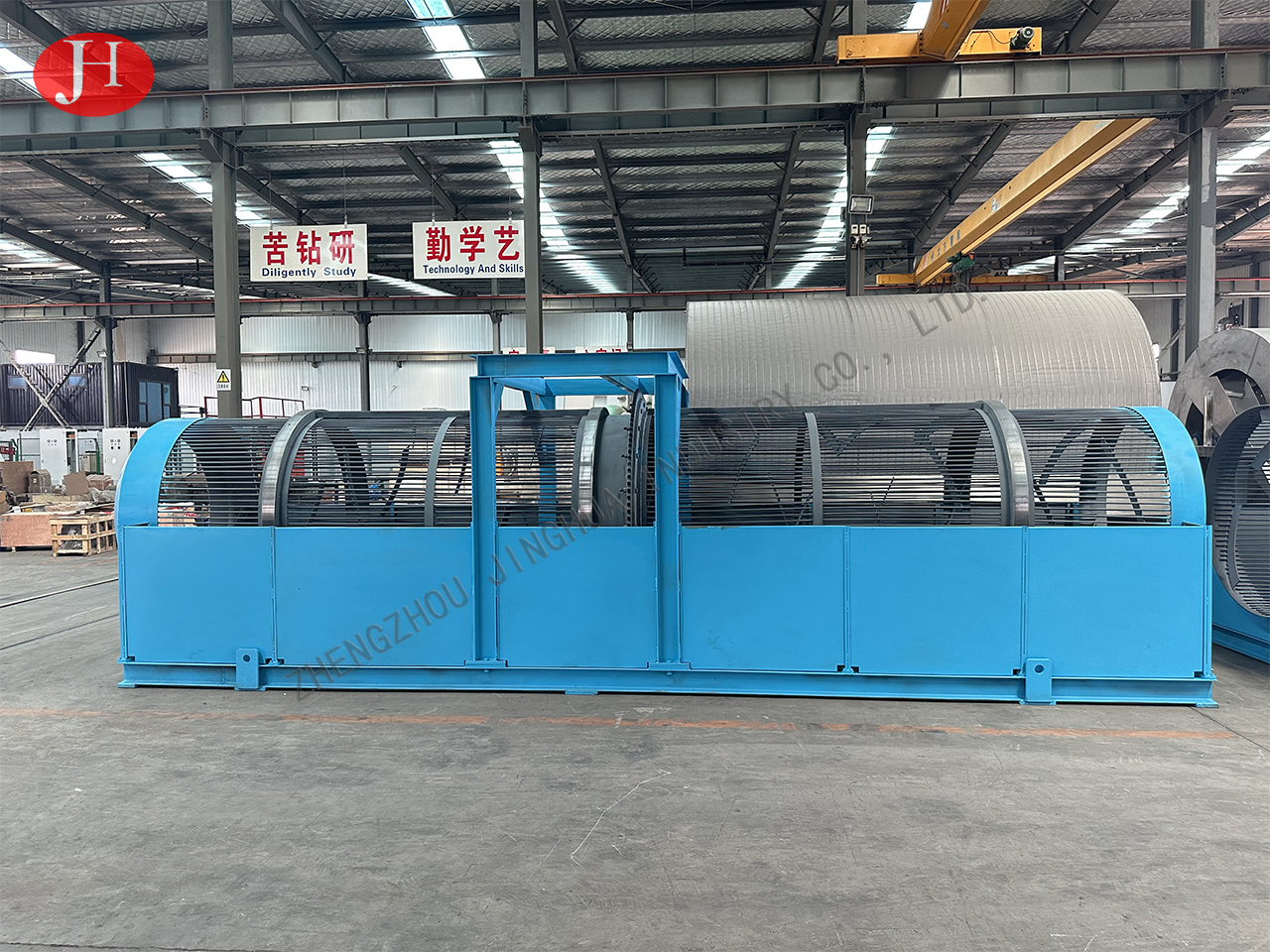

Cage Cleaning Machine
Main technical parameters
|
Model |
Drum diameter (mm) |
Drum speed (r/min) |
Drum lenght (mm) |
Power (Kw) |
Weight (kg) |
Capcity (t/h) |
Dimension (mm) |
|
GS100 |
1000 |
18 |
4000-6500 |
5.5/7.5 |
2800 |
15-20 |
4000*2200*1500 |
|
GS120 |
1200 |
18 |
5000-7000 |
7.5 |
3500 |
20-25 |
7000*2150*1780 |
Features
- 1Cage cleaning machine adopts horizontal drum with internal screw guiding feeding, and the material moves forward under the thrust of the screw.
- 2Combining the latest technology and years' experience into a whole.
- 3Adopting method of countercurrent washing, excellent washing result, mud and sand removing.
- 4Reasonable feeding structure. The damage rate of raw material is under 1% and this can ensure high starch extraction yield.
- 5Compact design, big capacity, energy and water saving.
- 6Stable operation and rational motor equipped.
- 7The rotating drum is made of high quality shell perforated with numerical control punch for long time.
- 8Fully stainless steel to be sure there is no corrosion;
- 9Stable operation and low damage to be profitable for starch extraction;
- 10Easy to installation and maintenance.
Show Details
Cage cleaning machine adopts horizontal drum with internal screw guiding feeding, and the material moves forward under the thrust of the screw.
Cage cleaning machine is used to clean up the sand, stones and potato skin of sweet potato, potato, cassava and other potato materials.
After the cage cleaning machine preliminary stone, the use of the rotary cleaning machine cleaning, can save water, improve work efficiency.
Scope of Application
Cage cleaning machine is used to clean up the dirt, stones and sundries of sweet potato, potato, cassava and other potato materials. Suitable for sweet potato starch, potato starch and other starch production enterprises.
