Paddle Cleaning Machine for Cassava Processing
Main technical parameters
|
Model |
QX130-2 |
QX140-2 |
QX140-3 |
|
Diameter of paddle(mm) |
Φ1000 |
Φ1280 |
Φ1400 |
|
Speed of rotor(r/min) |
21 |
21 |
21 |
|
Working length(mm) |
6000 |
6000 |
6000 |
|
Power(Kw) |
5.5x2 |
7.5x2 |
7.5x3 |
|
Capacity(t/h) |
10-20 |
20-35 |
35-50 |
Features
- 1The machine adopts principle of counter current washing to effectively clean out mud and sand.
- 2Large capacity, can process raw material 10-20t/h.
- 3Steady operation and low damage rate
- 4Rational method of feeding, it' s good in distributing equipment in workshop.
- 5Steady operation with low material damage rate is profitable for extracting starch.
- 6The machine structure is simple with large capacity, effective cleaning, energy and water saving.
- 7The machine is widely used in cassava starch processing industry.
Show Details

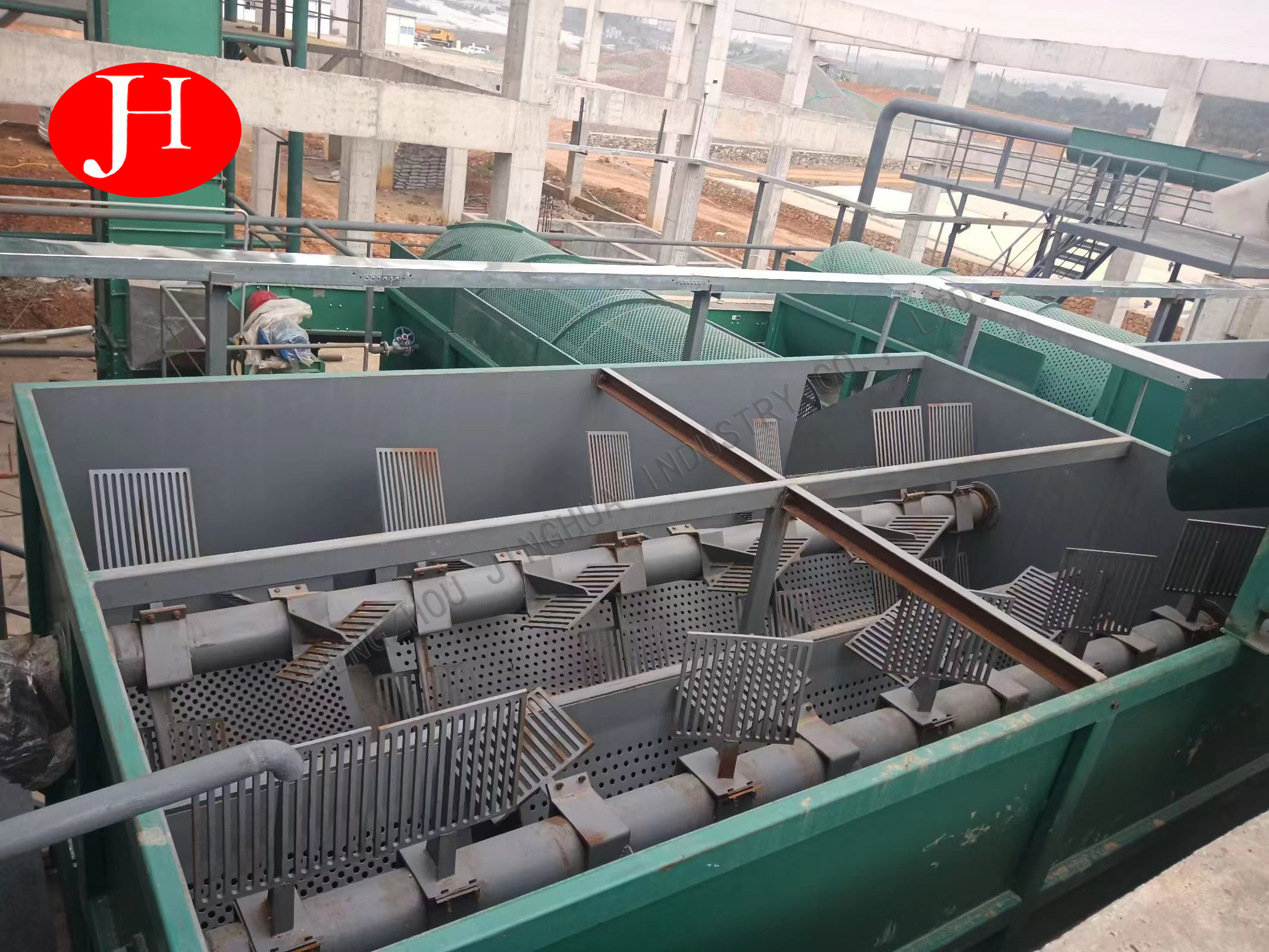

Paddle cleaning machine is used for cassava starch processing industry cleaning, widely used in the principle of cassava starch processing industry cleaning.
The whole machine is composed of motor, reducer, tank body, stone bucket, blade, drive shaft and so on. Width and length can be adjusted according to the output.
The material enters the cleaning machine from one side, and the paddle is rotated by the motor to stir and clean the material. At the same time, the material is pushed from one side to the other side to complete a cleaning cycle.
Scope of Application
The paddle cleaning machine is used for the principle cleaning of cassava starch processing industry.
It is very useful in cleaning cassava, sweet potato, potato and etc. Also our paddle cleaning machine is the important equipment widely used in starch processing machinery.
