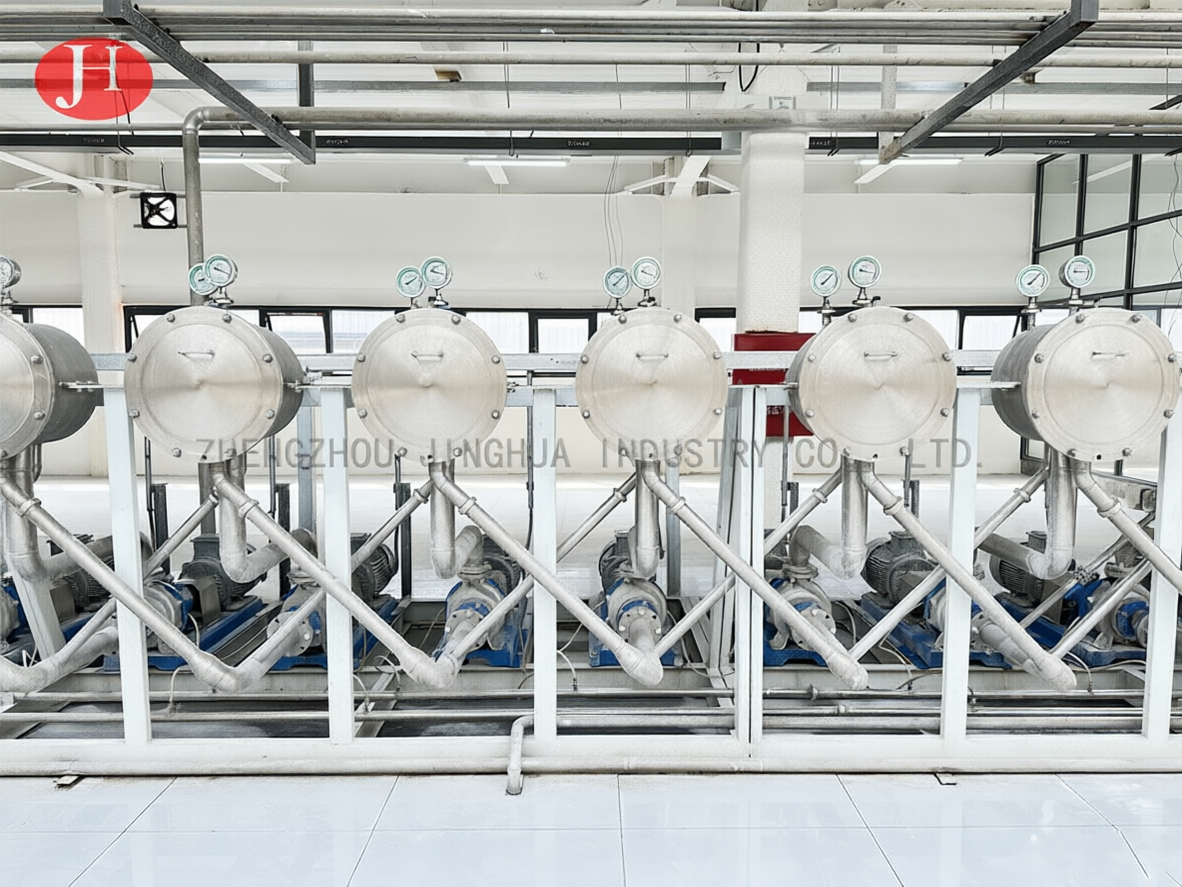

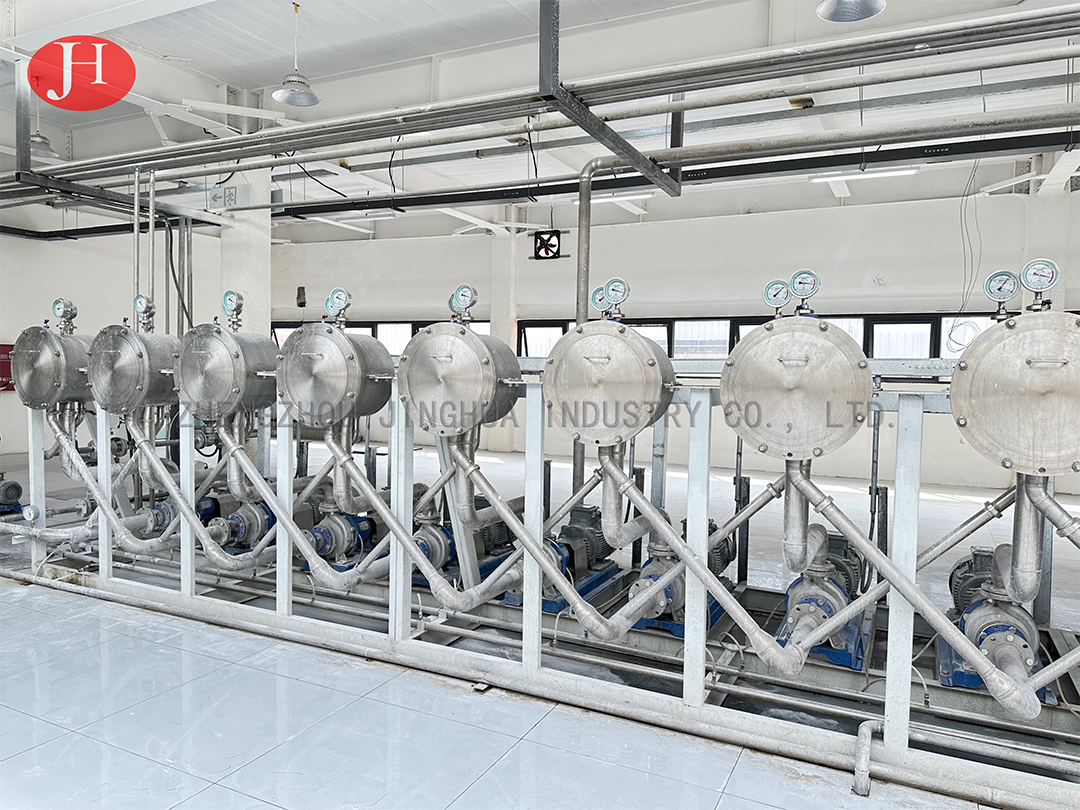

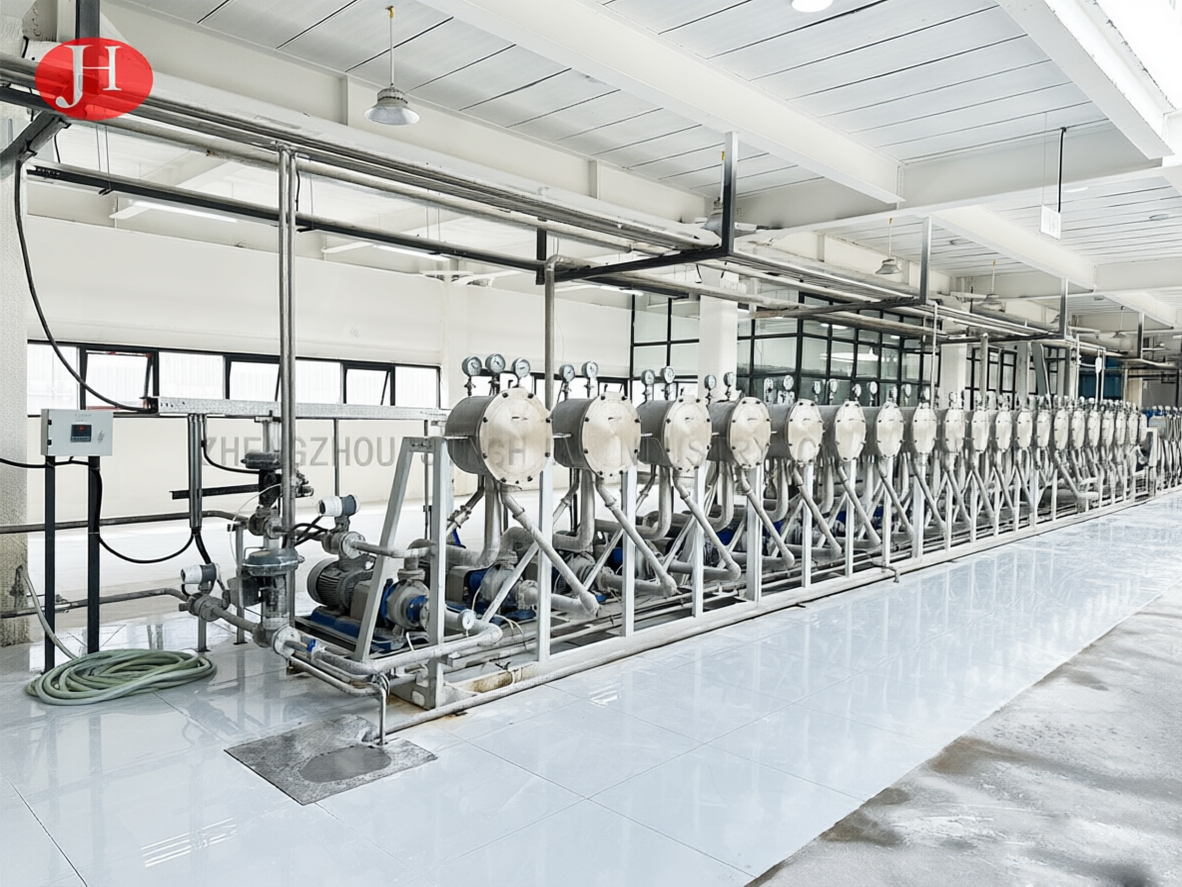

Hydrocyclone Machine for Starch Processing

Zhengzhou jinghua starch hydro cyclone is used to each kind of starch and modified starch emulsion degreasing, fine slag separation, protein separation, washing and enrichment, etc. Continuous concentration and separation of food industry suspension, clarification, etc.

Send email to us

Product Detail

Main technical parameters

Model	XL325	XL438	XL516	XLS426
Plate quantity	1	1	1	2	Group capacity: 3-12t/h Power: 7.5-45kw/stage Total weight: 0.3t/stage
Cylinder diameter(mm)	362	438	516	426
Cylinder norm(mm)	10,15	10,15	10,15	10,15
Feed Pressure(MPa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Inlet Size(mm)	76	89	89	2* 89
Underflow Size(mm)	48	48	57	76
Top flow Size(mm)	57	57	76	2- 57

Features

1Fully stainless steel to be sure there is no corrosion.
2Advanced surface treatment craftOil and dirty resisting.
3Widely used for starch extraction in starch processing plants.
4Multifunction of concentration, recovery, washing and separation for hydrocyclone group.
5Cyclone pipes are made from material of reinforced nylon with high strength, deter abrasive resistance and excellent separation result.
6Hydroclone designing is adopted to get better starch separation according to the features of different material.
7Pipeline of hydrocyclone group passes computer optimization designCompact and elegant.
8Special sealing design, friendly operation.

Show Details

Starch milk enters the middle cavity of the cylinder body through the starch pump from the feeding port of the cyclone. Starch paste enters the inlet of the cyclone tube and enters the inner part of the cyclone tube along the tangent direction of the cyclone tube. In the swirl tube, the material components rotate according to the spiral line and generate centrifugal force.

And relative density of small proteins and water centrifugal force is small, the spiral motion, is reduced to about the lower part of the cone resistance by bottom LiuKou formed in the reverse direction of rotation of the spiral vortex uplink to LiuKou eduction, so as to achieve the purpose of each one.
