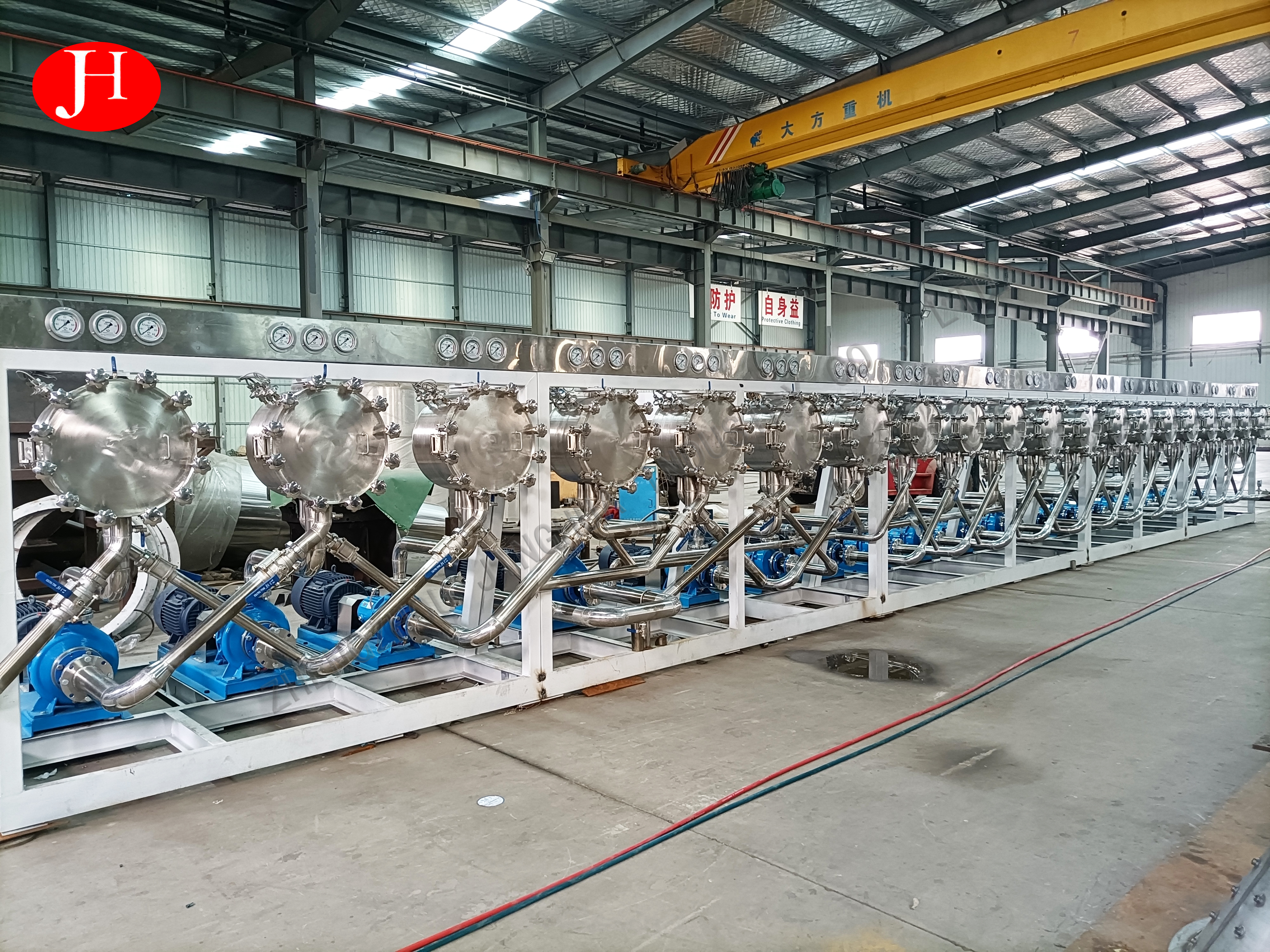

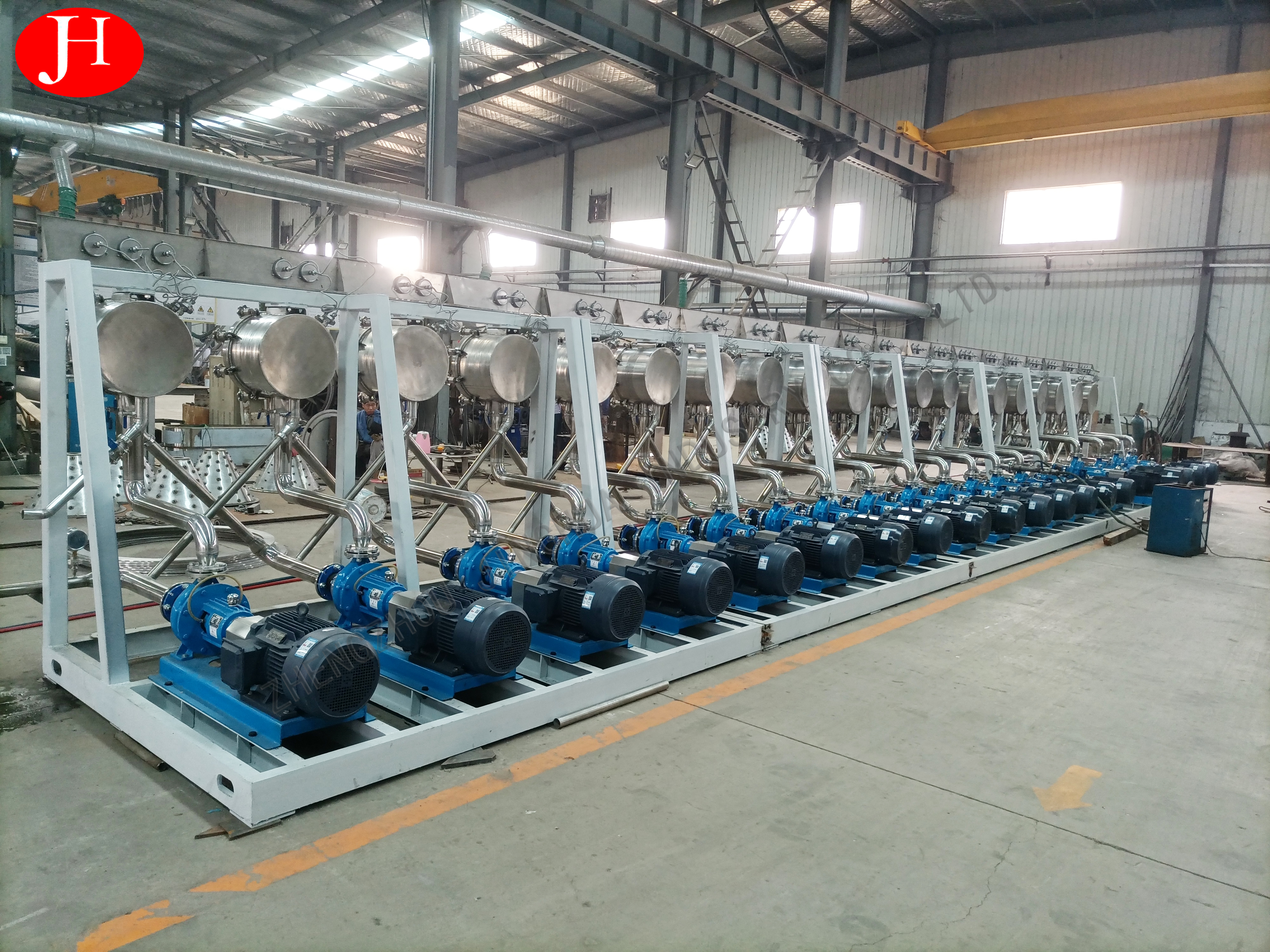

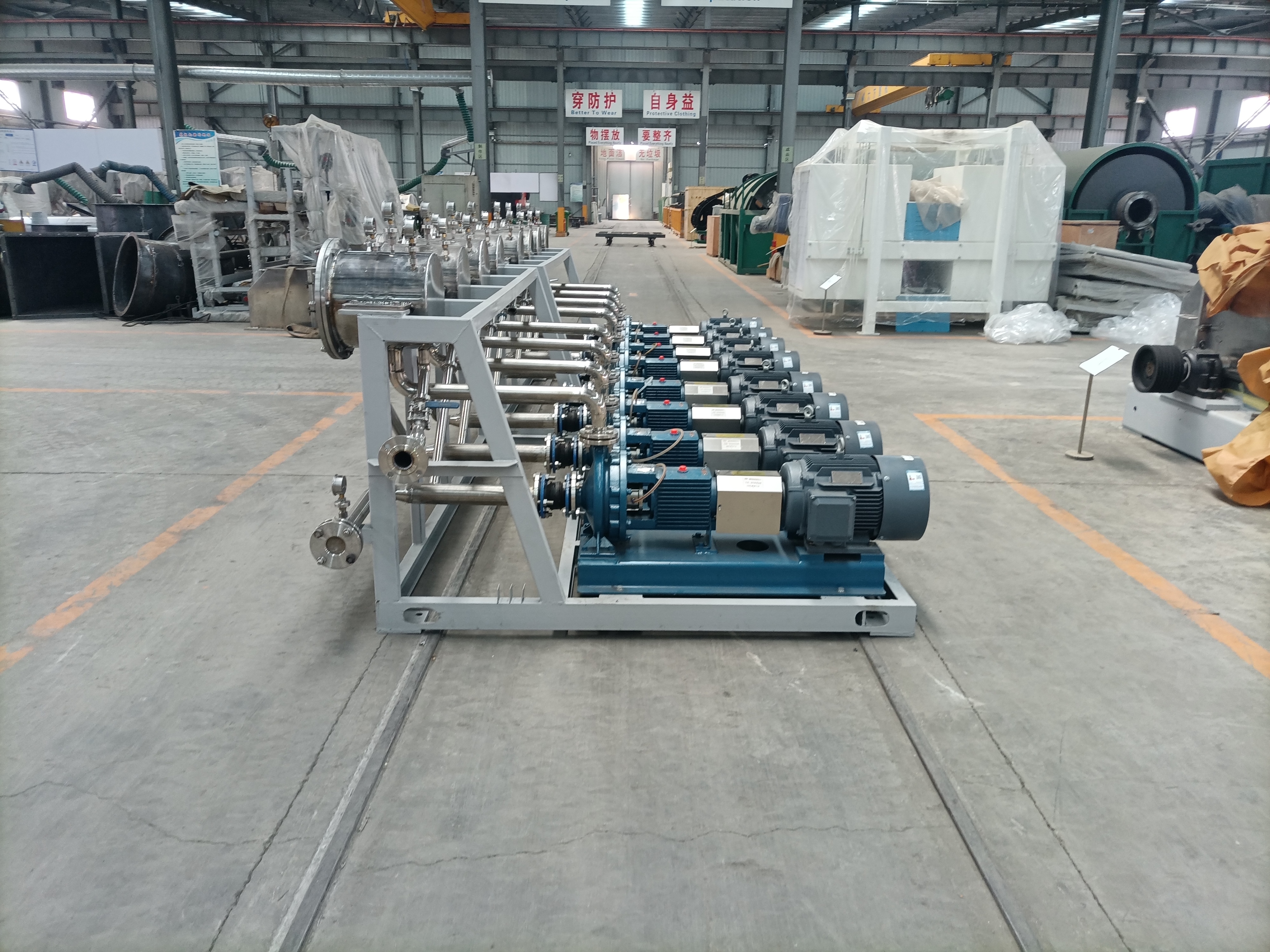

hydro cyclone plate

hydro cyclone plate is used for hydrocyclone which is used to each kind of starch and modified starch emulsion degreasing, fine slag separation, protein separation, washing and enrichment, etc. Continuous concentration and separation of food industry suspension, clarification, etc.

Send email to us

Product Detail

Main technical parameters

Model	XL325	XL438	XL516	XLS426
Plate quantity	1	1	1	2	Group capacity: 3-12t/h Power: 7.5-45kw/stage Total weight: 0.3t/stage
Cylinder diameter(mm)	362	438	516	426
Cylinder norm(mm)	10,15	10,15	10,15	10,15
Feed Pressure(MPa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Inlet Size(mm)	76	89	89	2* 89
Underflow Size(mm)	48	48	57	76
Top flow Size(mm)	57	57	76	2- 57

Show Details

Starch milk enters the middle cavity of the cylinder body through the starch pump from the feeding port of the cyclone. Starch paste enters the inlet of the cyclone tube and enters the inner part of the cyclone tube along the tangent direction of the cyclone tube. In the swirl tube, the material components rotate according to the spiral line and generate centrifugal force.

And relative density of small proteins and water centrifugal force is small, the spiral motion, is reduced to about the lower part of the cone resistance by bottom LiuKou formed in the reverse direction of rotation of the spiral vortex uplink to LiuKou eduction, so as to achieve the purpose of each one.
