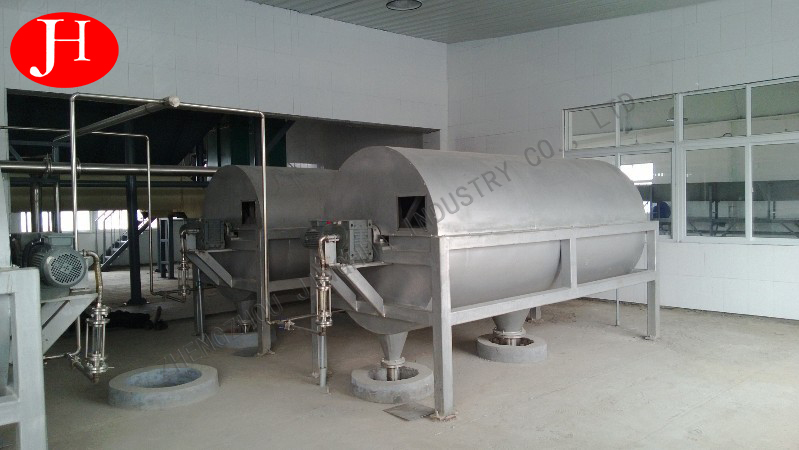

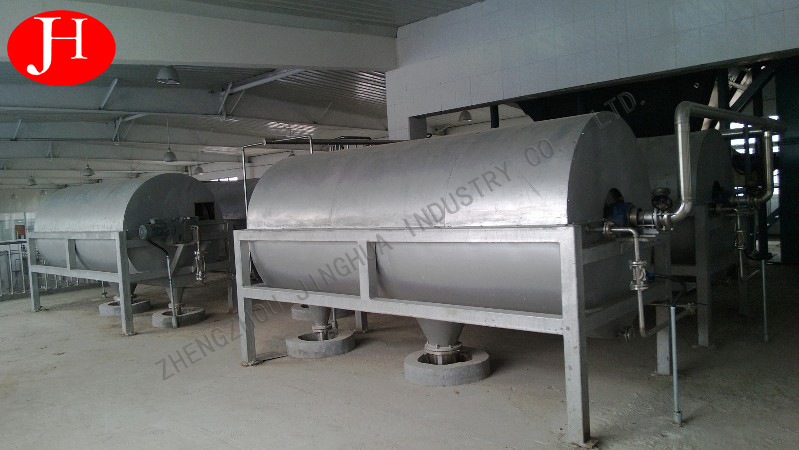

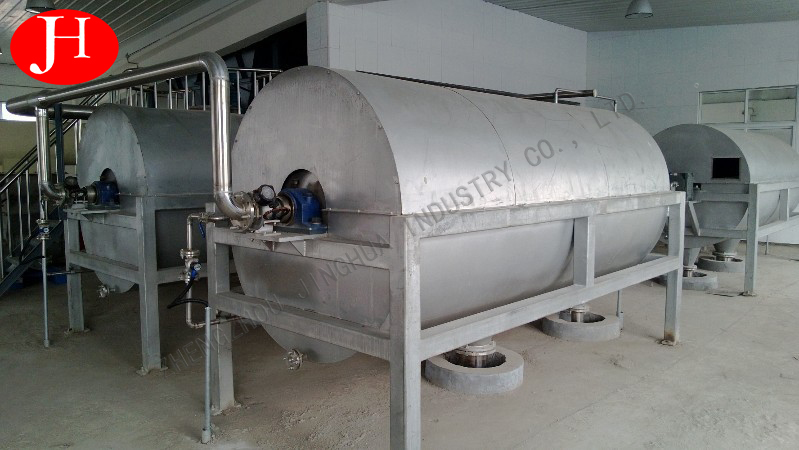

Fine Fiber Sieve for Starch Processing

The starch slurry pumped by the starch pump enters the feed end of the drum through the feed port, the drum is composed of bottom mesh skeleton and surface mesh, the drum rotates at a constant speed under the drive system, thus driving the material to move on the drum screen surface, under the rinsing action of spray water, small particles of starch through the surface mesh into the slurry collection bin, discharged from the collection port, and fine slag and other fibers can not pass through the surface mesh, Stay on the screen surface and discharge from the slag outlet, so as to achieve the purpose of separating fine slag.

The whole drum is partly supported by the drum bracket and automatically centered. In the process of fine slag separation, the outside of the drum has a back flushing system, and the nozzle is constantly spraying and washing the back of the face network to ensure timely washing of the blocked face network and out of the accumulated fine fibers, so as to ensure the permeability of the screen and the continuous operation of the equipment.
