Cutting Machine for  Starch Processing

Products

Cutting Machine for Starch Processing

Zhengzhou Jinghua Industry crusher is newly designed with compact structure, easy disassembly and low maintenance cost. The machine is widely used for cracking big materials. The raw material is usually fresh cassava tube, fresh sweet potato and after crushing you can get the finished product with a 20-30mm size. It is a precrushing.


Product Detail

Main technical parameters

Model

Blade Number

(piece)

Rotor length

(mm)

Power

(Kw)

Dimension

(mm)

Weight

(kg)

Capacity

(t/h)

DPS5050

9

550

7.5/11

1030x1250x665

650

10-15

Diameter of rotor:Φ480mm

Speed of rotor:1200r/min

DPS5076

11

760

11/15

1250x1300x600

750

15-30

DPS50100

15

1000

18.5/22

1530x1250x665

900

30-50

DPS60100

15

1000

30/37

1530x1400x765

1100

60-80

Features

  • 1 Fully stainless steel to be sure there is no corrosion
  • In dependent research and development,integrate with the same kind so fequipment performance from local and abroad manufactures, and combined with our many years useing esperience.
  • Newly designed with compact structure,easy disassembly and low maintenance cost.
  • Small volumes with large capacity,medium speed,low energy consumption and steady operation.
  • 5  To avoid duplication of material cutting and improvge cutting ability.Blade is sepcially made and is durable.
  • Parts contact with material are made of stainless steel,to ensure materials not contaminated.
  • 7 This machine has features of low energy consumption, high capacity, fine particles and easy installation, easy maintenance.
  • The machines is widely used for cracking of big material.

Show Details

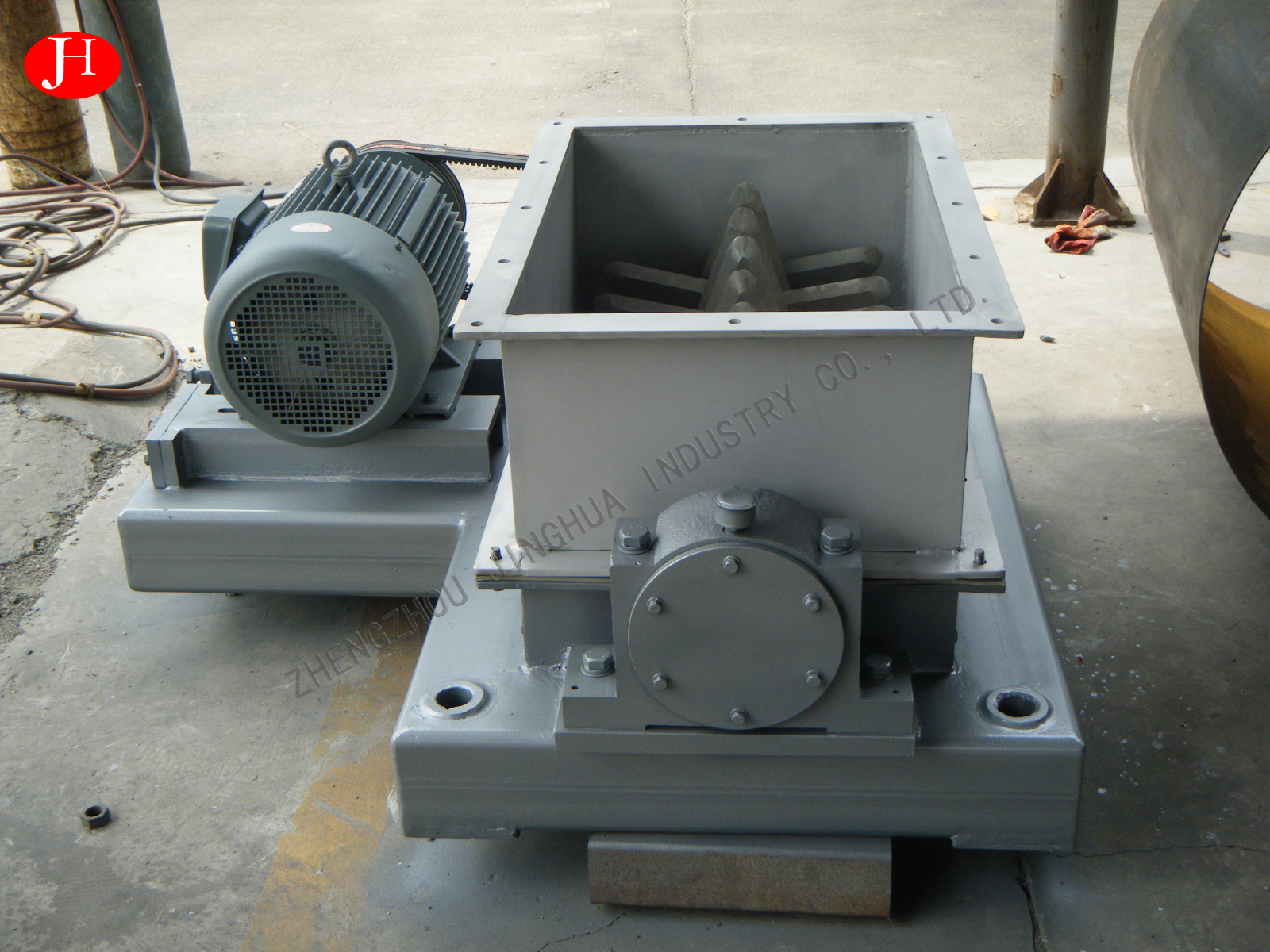

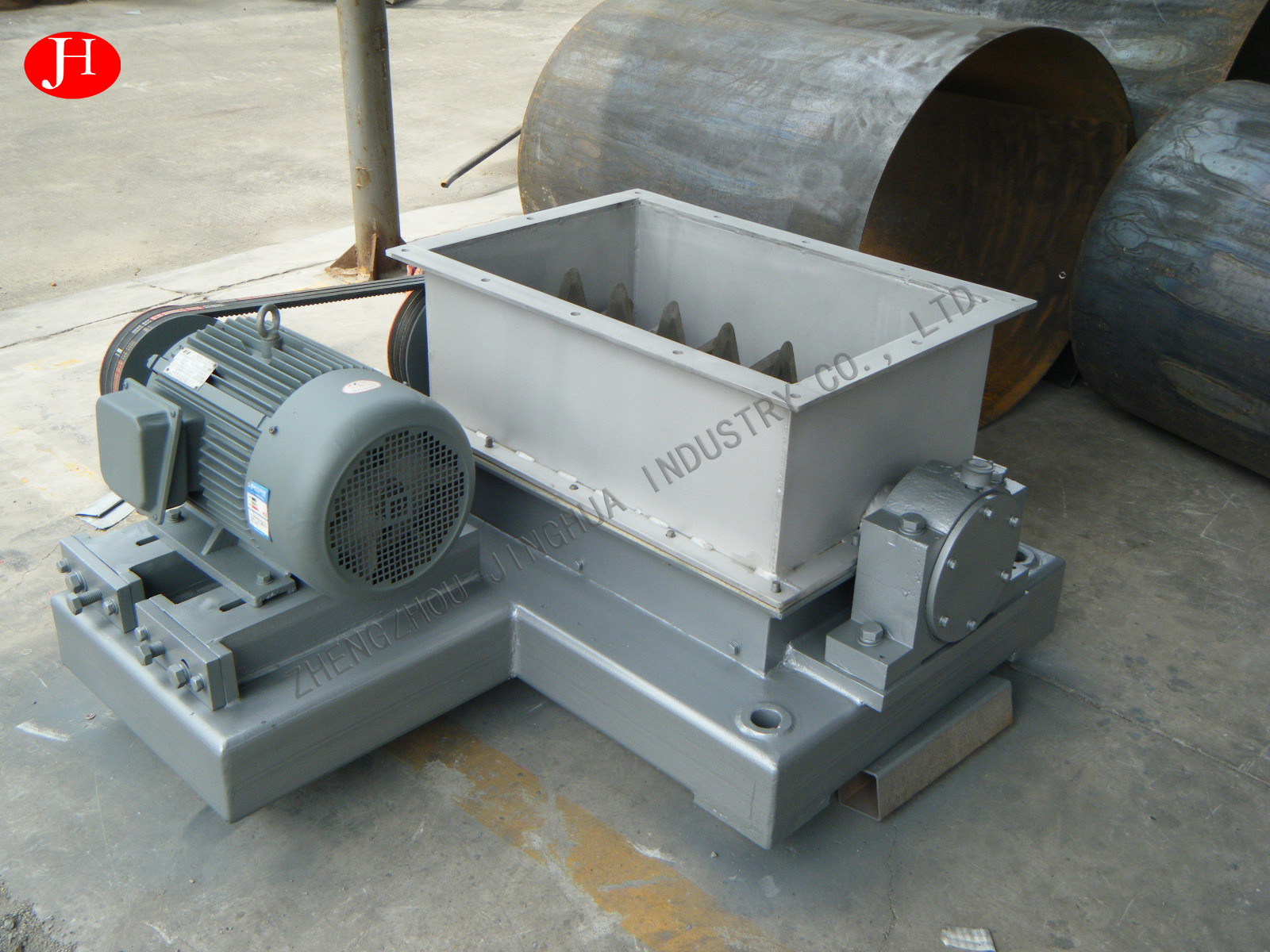

The main working part of the crusher is a rotary table with a blade.

The rotary table is composed of a spindle and a rotary table.The motor drives the rotary table to rotate at a medium speed in the slicing chamber, and the material enters from the upper feeding port,the upper part of the rotary knife is sheared by the rotary blade and is discharged at the lower part of the rotary knife.

1
1.2
1.3

Scope of Application

The machine is widely used for cracking big materials.which is widely used in the processing of potato starch , cassava flour, sweet potato starch.
